Arrangement of multiple pump – Parallel and Series (การต่อเครื่องสูบน้ำหลายตัวทำงานร่วมกันแบบขนานและอนุกรม)

EN

In pumping systems, combining pumps improves capacity, reliability, and flexibility. The two primary configurations are parallel and series, each serving specific needs.

Parallel Arrangement

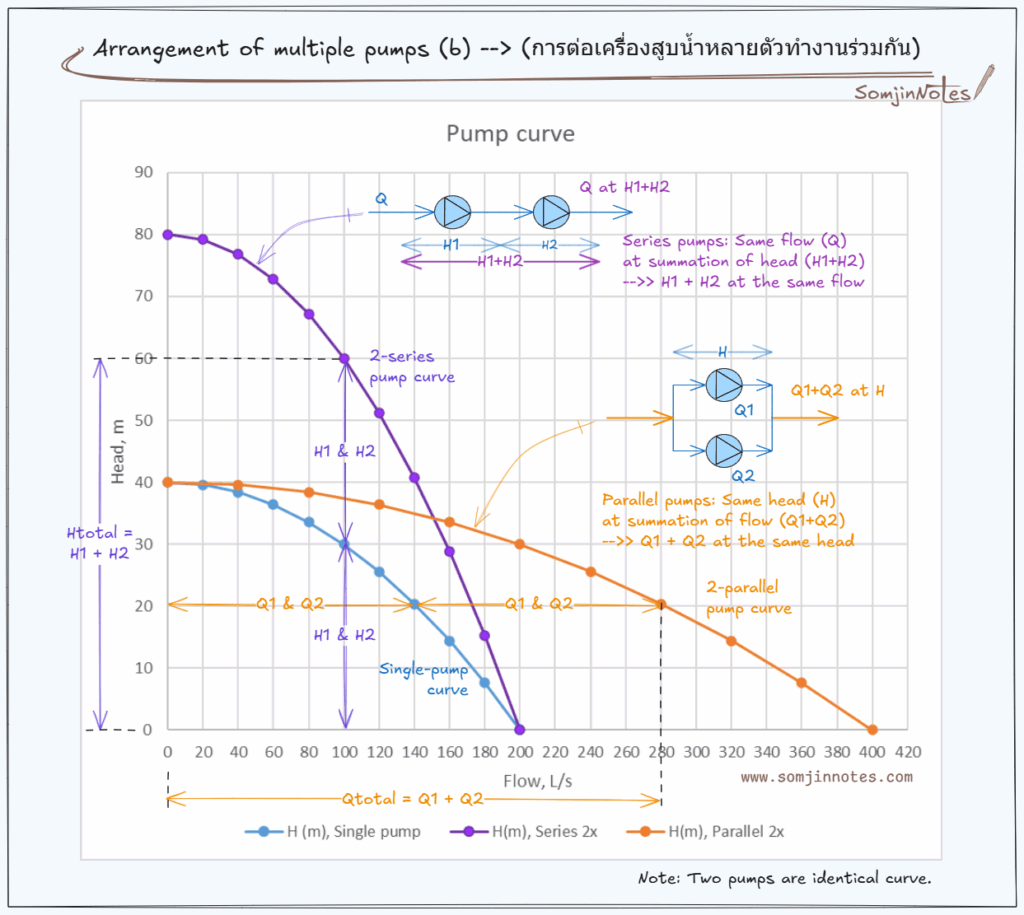

In a parallel configuration, pumps discharge into a common header. The pressure (head) for each pump is at the same, but the total flow rate increases. This setup is practical for systems requiring high flow, redundancy, or variable demand (like HVAC chilled water systems). It allows operators to stage pumps on or off to save energy.

Series Arrangement
In a series configuration, one pump feeds into the suction of the next. The flow rate remains constant, but the pressure (head) adds up. This arrangement is necessary when a single pump cannot overcome the required system resistance, such as in high-rise buildings or very long pipelines.

Summary
Parallel sums flow at the same head while Series sums head at the same flow. Choose parallel for capacity and redundancy, and choose series for high-head applications.

TH

ในระบบสูบจ่ายน้ำ การนำปั๊มมาทำงานร่วมกันช่วยเพิ่มขีดความสามารถ ความน่าเชื่อถือ และความยืดหยุ่นในการใช้งาน โดยรูปแบบหลักๆ มี สองแบบ คือ แบบขนาน (Parallel) และ แบบอนุกรม (Series) ขึ้นอยู่กับความต้องการที่ต่างกัน

การต่อแบบขนาน (Parallel Arrangement)
การต่อแบบขนานคือการที่ปั๊มหลายตัวจ่ายน้ำออกไปยังท่อร่วม (Common Header) เดียวกัน โดยที่ แรงดัน (Head) ของแต่ละตัวจะเท่ากัน แต่อัตราการไหลรวม (Total Flow) จะเพิ่มขึ้น การจัดแบบนี้เหมาะสำหรับระบบที่ต้องการปริมาณน้ำมาก หรือระบบที่มีความต้องการใช้น้ำไม่คงที่ (เช่น ระบบ Chilled water ในงาน HVAC) ซึ่งช่วยให้ Operators สามารถเลือกเปิด-ปิดปั๊มตามความต้องการใช้งานจริงเพื่อประหยัดพลังงานได้

การต่อแบบอนุกรม (Series Arrangement)
การต่อแบบอนุกรมคือการที่ปั๊มตัวแรกส่งน้ำเข้าสู่ท่อดูดของปั๊มตัวถัดไป ในรูปแบบนี้ อัตราการไหลจะเท่าเดิม แต่แรงดัน (Head) จะเพิ่มขึ้น การจัดแบบนี้จำเป็นเมื่อปั๊มตัวเดียวไม่สามารถสร้างแรงดันได้เพียงพอ เช่น การสูบน้ำขึ้นตึกสูง หรือการส่งน้ำผ่านท่อที่มีระยะทางไกลมากๆ

สรุป
จำง่ายๆ ว่า “ขนานเพิ่ม Flow อนุกรมเพิ่ม Head” เลือกแบบขนานเมื่อต้องการอัตราการไหลของน้ำมากหรือต้องการมีเครื่องสำรอง (Stand by or Redundancy) และเลือกแบบอนุกรมเมื่อต้องการแรงดันสูง
