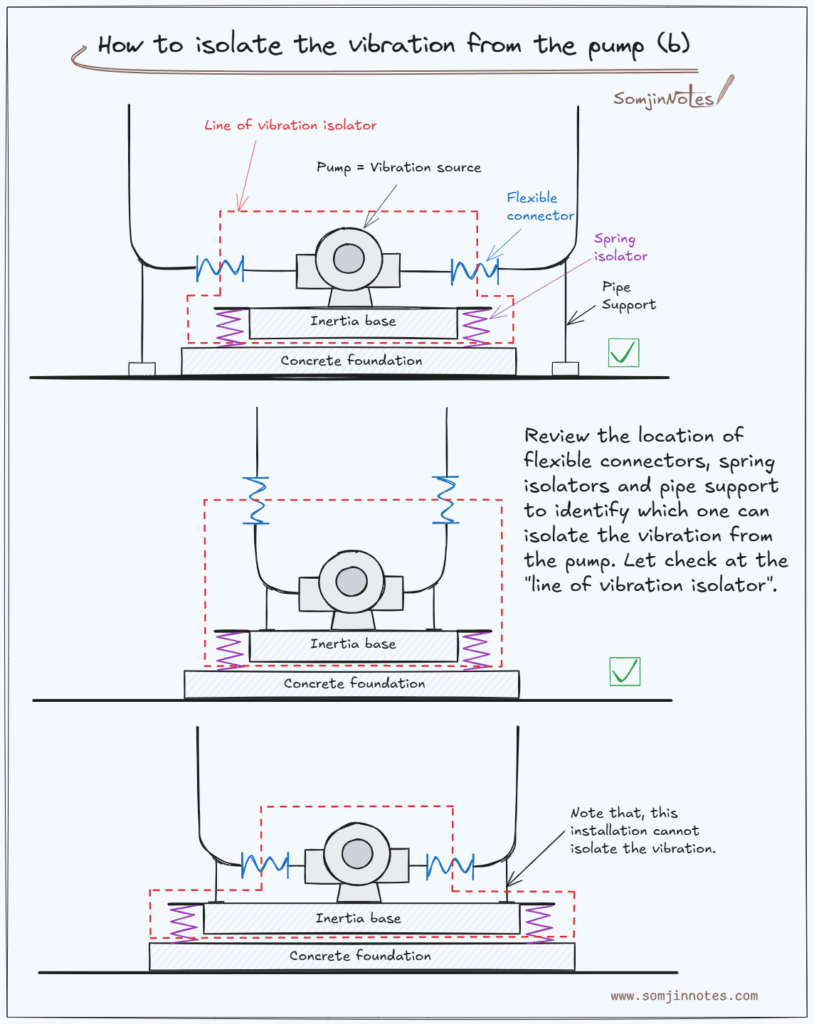

Pump is the source of vibration, in order to protect the piping system and floor from the vibration we need to isolated it. Flexible conectors and spring isolators ared used. However, it shall be completely isolated. The simple way to regcognize is to draw the “line of vibration isolator” as shown in figure below.
